CONTROL / ALUMINUM KNOBS

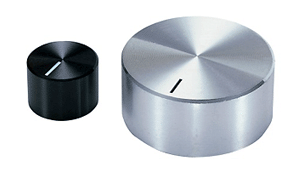

42011

Metal Knobs
Description
Material: Aluminum cab with ABS plastic insert
Set screw with steel ring
With indicator line on top
PART NO.
D
d1
d2
H
h1
h2
42011-1
18.0
6
13.0
12
3
9.5
42011-2
22.2
6
14.0
13
3
11.0
42011-3
31.9
6
15.5
14
3
12.5
42011-4
37.8
6
33.0
16
3
13.5

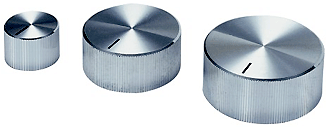

42012

Metal Knobs
Description
Material: Aluminum cab with ABS plastic insert
Set screw with steel ring
With indicator line on top
PART NO.
D
d1
d2
H
h1
h2
42012-1
18.6
6
13.0
12
3
9.5
42012-2
22.8
6
14.0
13
3
11.0
42012-3
32.5
6
15.5
14
3
12.5
42012-4
38.4
6
33.0
16
3
13.5

42013

Metal Knobs
Description
Material: Aluminum cab with ABS plastic insert
With set screw
Black indicator line on top
PART NO.
D
d
H
h
42013-1
14
4
11.2
7.5

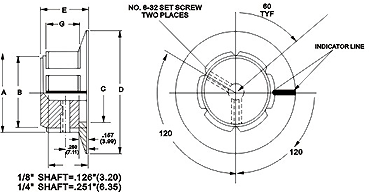

42015

Metal Knobs
Description
Material: Aluminum
6 Flute design with aluminum skirt and white indicator line
PART NO.
COLOR
A
B
C
D
E
F
G
SHAFT HOLE
42015-1
NATURAL
12.7
10.9
9.65
18.8
16.0
13.0
10.9
3.2
42015-2
NATURAL
12.7
10.9
9.65
18.8
16.0
13.0
10.9
6.4
42015-3
BLACK
12.7
10.9
9.65
18.8
16.0
13.0
10.9
3.2
42015-4
BLACK
12.7
10.9
9.65
18.8
16.0
13.0
10.9
6.4
42015-5
NATURAL
19.0
16.5
15.0
28.4
16.0
28.4
7.11
6.4
42015-6
BLACK
19.0
16.5
15.0
28.4
16.0
28.4
7.11
6.4
42015-7
NATURAL
23.9
20.8
18.0
35.5
16.0
28.4
7.11
6.4
42015-8
BLACK
23.9
20.8
18.0
35.5
16.0
28.4
7.11
6.4

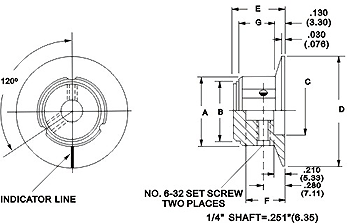

42018

Metal Knobs
Description
Material: Aluminum
3 Flute design with aluminum skirt and indicator line
PART NO.
COLOR
A
B
C
D
E
F
G
SHAFT HOLE
42018-1
NATURAL
12.7
10.9
9.65
19.0
16.0
12.9
10.9
3.2
42018-2
NATURAL
12.7
10.9
9.65
19.0
16.0
12.9
10.9
6.4
42018-3
BLACK
12.7
10.9
9.65
19.0
16.0
12.9
10.9
3.2
42018-4
BLACK
12.7
10.9
9.65
19.0
16.0
12.9
10.9
6.4
42018-5
NATURAL
19.0
16.5
14.9
28.4
16.0
12.9
10.9
6.4
42018-6
BLACK
19.0
16.5
14.9
28.4
16.0
12.9
10.9
6.4
42018-7
NATURAL
23.9
20.8
18.0
35.6
16.0
12.9
10.9
6.4
42018-8
BLACK
23.9
20.8
18.0
35.6
16.0
12.9
10.9
6.4

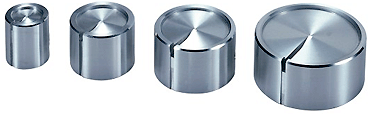

42020

Metal Knobs
Description
Material: Aluminum
Plain body with top and side sawcut indicator
PART NO.
COLOR
A
B
C
D
E
42020-1
NATURAL
12.7
9.65
3.05
8.64
14.2
42020-2
NATURAL
19.0
14.9
3.05
14.7
14.2
42020-3
NATURAL
23.9
18.0
3.05
19.8
14.2
42020-4
NATURAL
31.8
24.9
3.05
27.7
14.2

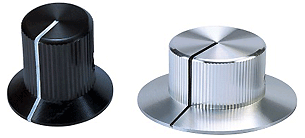

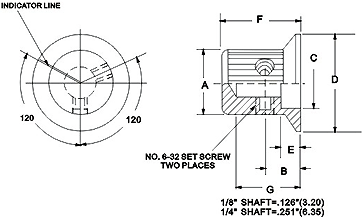

42021

Metal Knobs
Description
Material: Aluminum
Straight knurl with indicator line on top, and skirt
PART NO.
COLOR
A
B
C
D
E
F
G
SHAFT HOLE
42021-1
NATURAL
12.7
7.11
9.65
19.0
4.07
16.0
13.0
3.2
42021-2
NATURAL
12.7
7.11
9.65
19.0
4.07
16.0
13.0
6.4
42021-3
BLACK
12.7
7.11
9.65
19.0
4.07
16.0
13.0
3.2
42021-4
BLACK
12.7
7.11
9.65
19.0
4.07
16.0
13.0
6.4
42021-5
SMOKE
12.7
7.11
9.65
19.0
4.07
16.0
13.0
3.2
42021-6
SMOKE
12.7
7.11
9.65
19.0
4.07
16.0
13.0
6.4
42021-7
NATURAL
19.0
7.11
14.9
28.7
4.07
16.0
13.0
6.4
42021-8
BLACK
19.0
7.11
14.9
28.7
4.07
16.0
13.0
6.4
42021-9
SMOKE
19.0
7.11
14.9
28.7
4.07
16.0
13.0
6.4
42021-10
NATURAL
23.9
7.11
18.0
35.5
4.07
16.0
13.0
6.4
42021-11
BLACK
23.9
7.11
18.0
35.5
4.07
16.0
13.0
6.4
42021-12
SMOKE
23.9
7.11
18.0
35.5
4.07
16.0
13.0
6.4

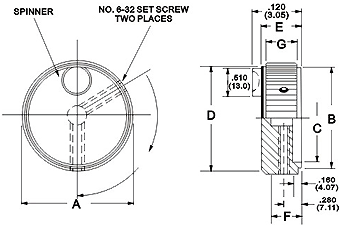

42023

Metal Knobs
Description
Material: Aluminum
Straight knurl with or without fingertip spinner
PART NO.
COLOR
A
B
C
D
E
F
G
LESS INDICATOR

42023-1
NATURAL
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-2
BLACK
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-3
NTL & BLK
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-4
BLK & NTL
44.4
39.4
34.8
14.9
16.0
13.0
12.2
WITH INDICATOR

42023-5
NATURAL
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-6
BLACK
44.4
39.4
34.8
14.9
16.0
13.0
12.2
WITH SPINNER/LESS INDICATOR

42023-7
NATURAL
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-8
BLACK
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-9
NTL & BLK
44.4
39.4
34.8
14.9
16.0
13.0
12.2
42023-10
BLK & NTL
44.4
39.4
34.8
14.9
16.0
13.0
12.2

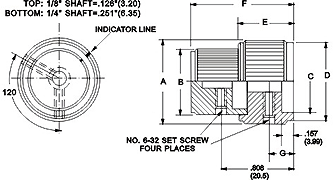

42024

Metal Knobs
Description
Material: Aluminum
Straight knurl concentric set with indicator line
PART NO.
COLOR
A
B
C
D
E
F
G
42024-1
NATURAL
19.0
12.7
14.5
17.8
16.0
29.2
7.11
42024-2
BLACK
19.0
12.7
14.5
17.8
16.0
29.2
7.11
42024-3
NATURAL
23.9
19.0
18.0
22.8
16.0
29.2
7.11
42024-4
BLACK
23.9
19.0
18.0
27.8
16.0
29.2
7.11

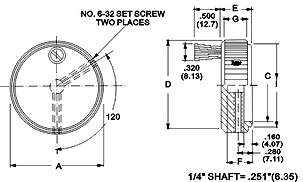

42025

Metal Knobs
Description
Material: Aluminum
Straight knurl with crank spinner
PART NO.
COLOR
A
B
C
D
E
F
G
42025-1
NATURAL
44.4
39.4
34.8
41.9
16.0
13.0
12.2
42025-2
BLACK
44.4
39.4
34.8
41.9
16.0
13.0
12.2
42025-3
NTL & BLK/BLK
44.4
39.4
34.8
41.9
16.0
13.0
12.2
42025-4
BLK & NTL/BLK
44.4
39.4
34.8
41.9
16.0
13.0
12.2
